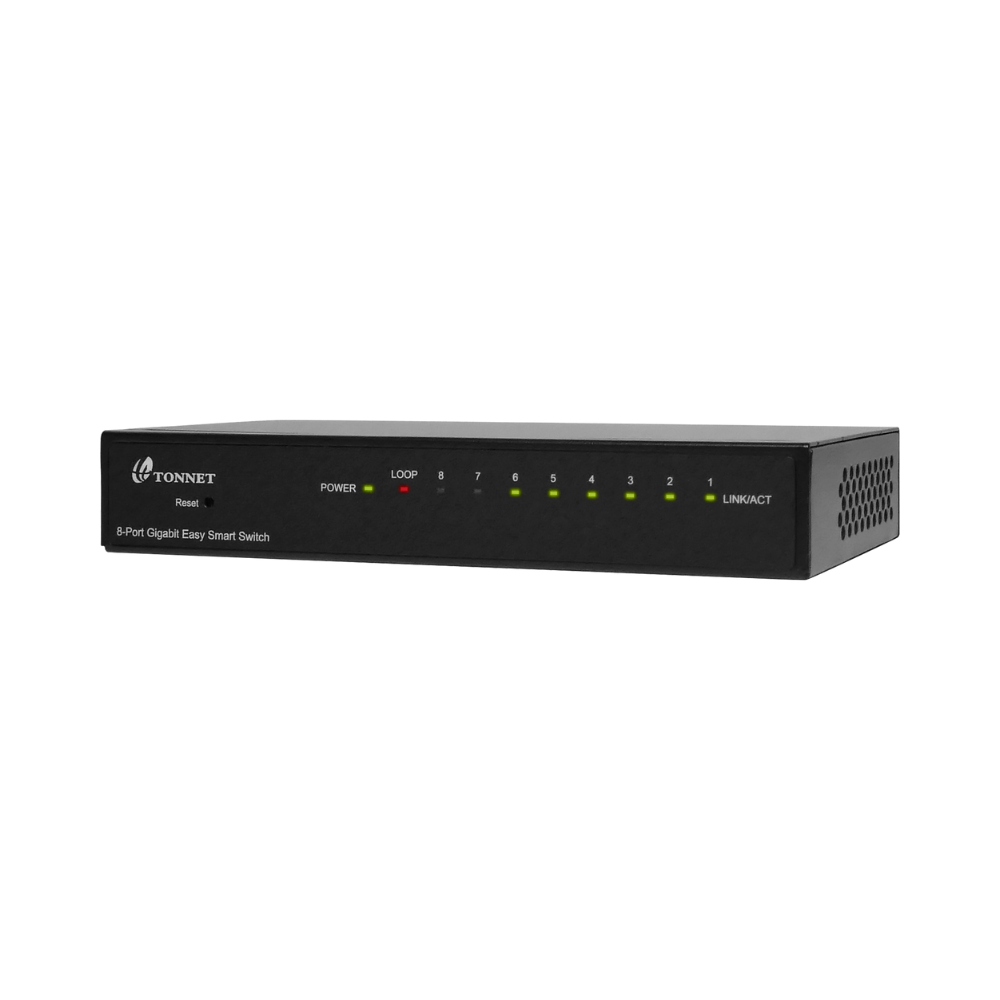

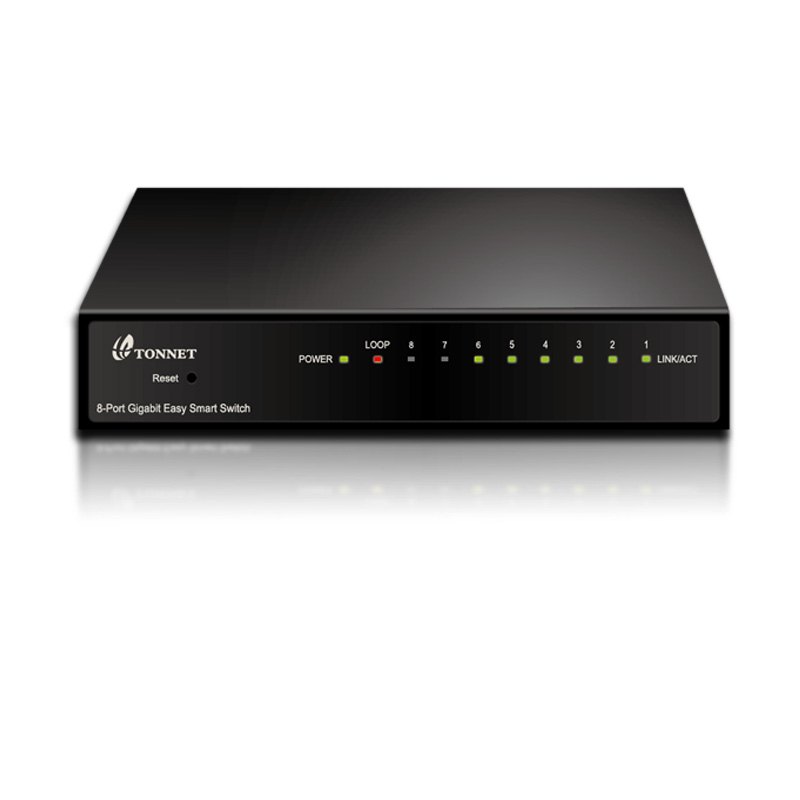

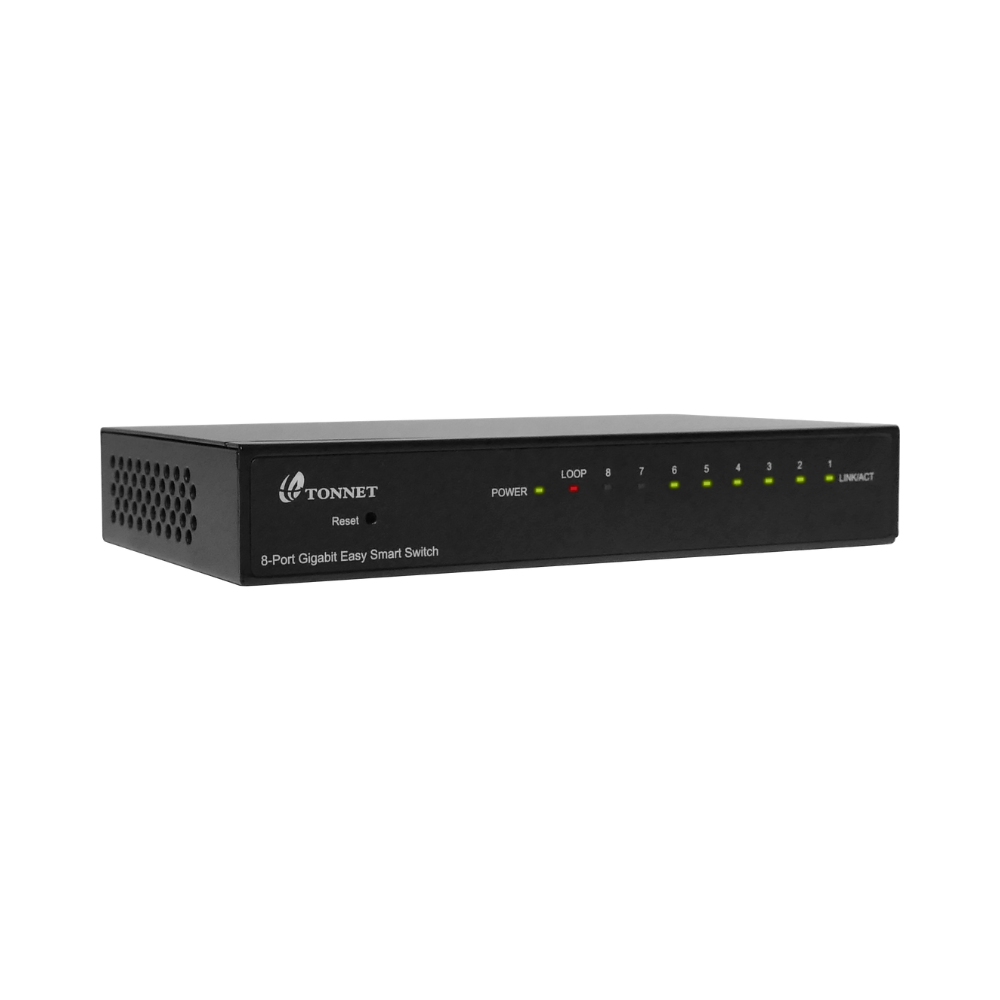

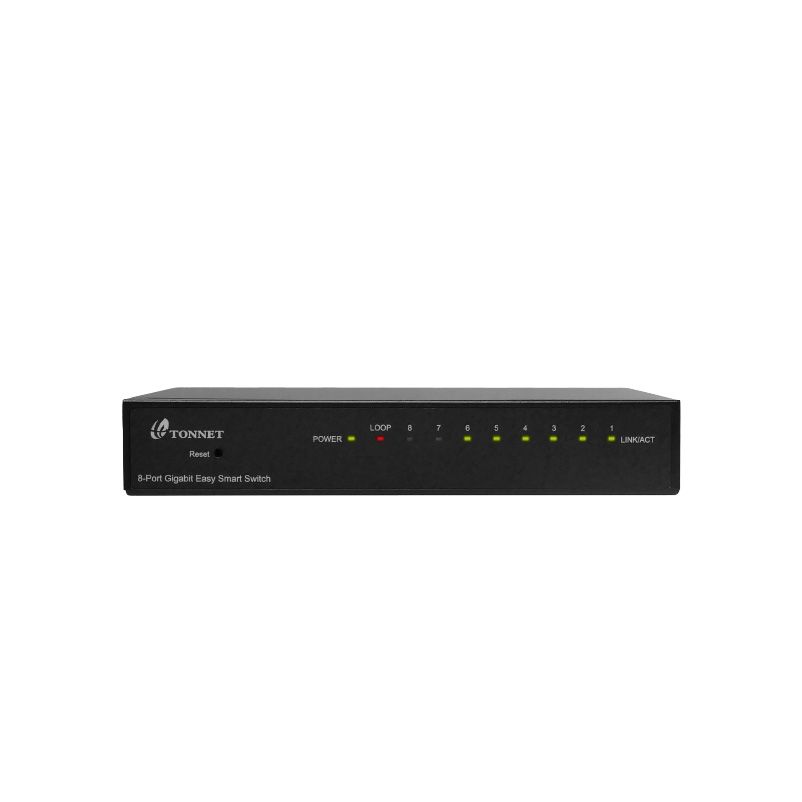

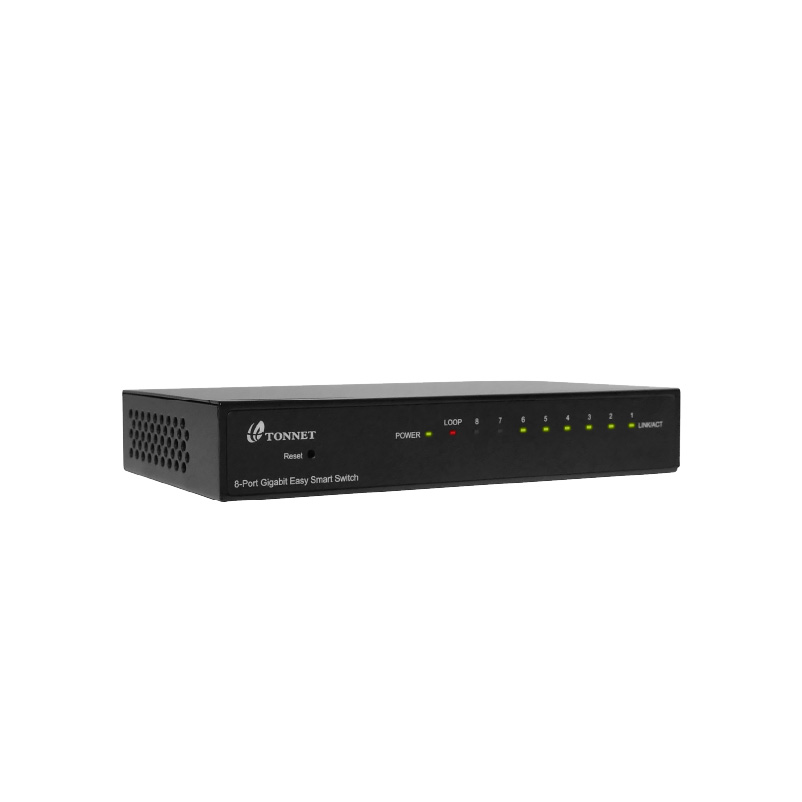

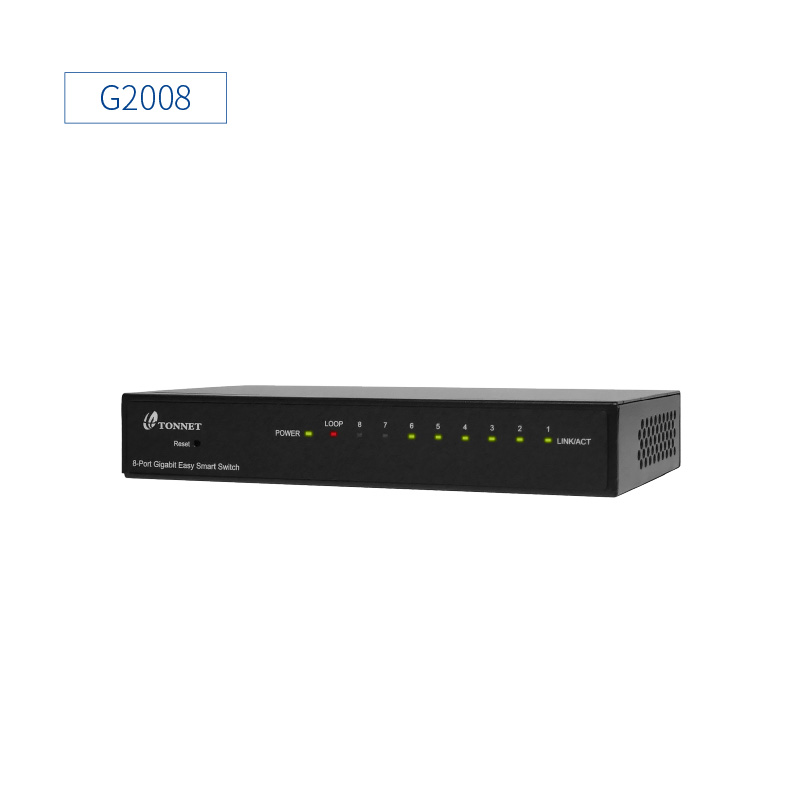

8埠桌上型網路交換器
G2008
[et_pb_section bb_built=”1″ _builder_version=”3.0.47″][et_pb_row _builder_version=”3.0.48″ background_size=”initial” background_position=”top_left” background_repeat=”repeat”][et_pb_column type=”4_4″][et_pb_blurb title=”產品規格” use_icon=”on” font_icon=”%%260%%” icon_color=”#0c71c3″ icon_placement=”left” use_icon_font_size=”on” icon_font_size=”33px” module_id=”product02″ _builder_version=”3.17.6″ header_font_size=”30″]
[/et_pb_blurb][et_pb_text _builder_version=”3.17.6″]
|
硬體 |
|
|
網路介面埠 |

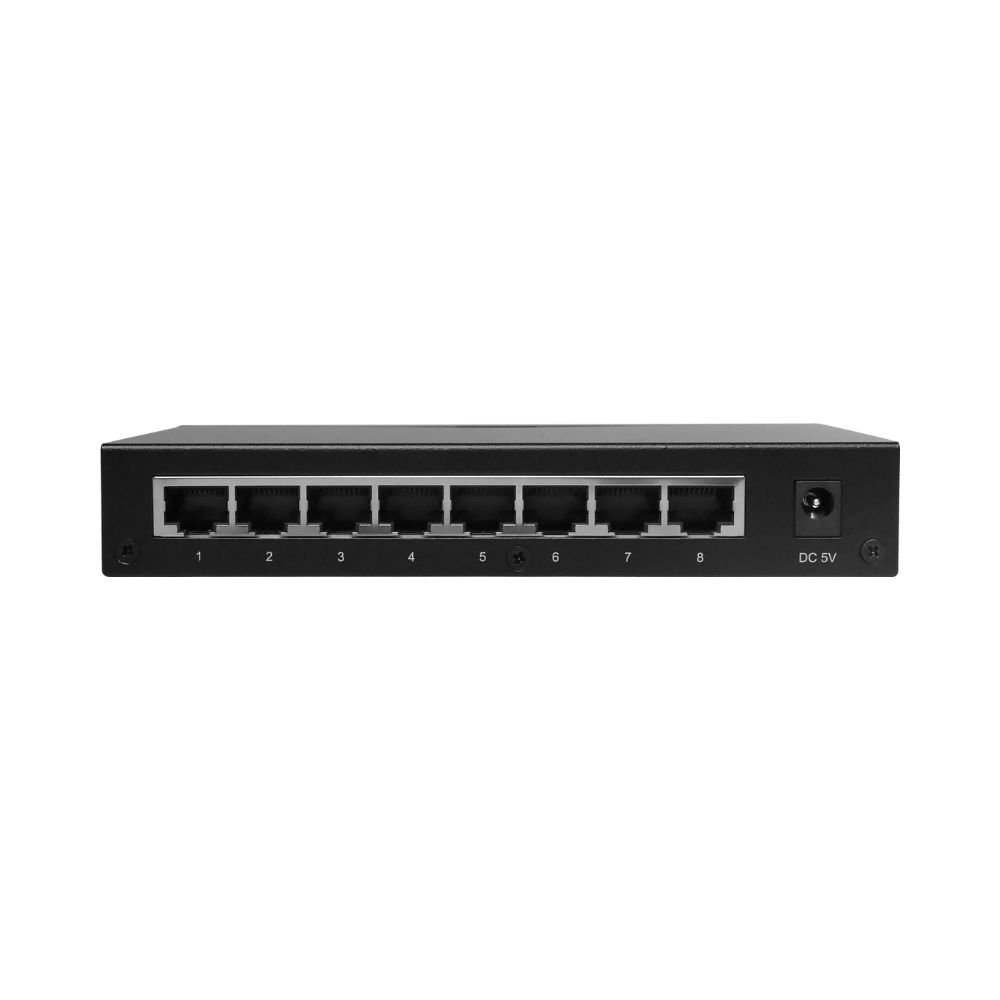

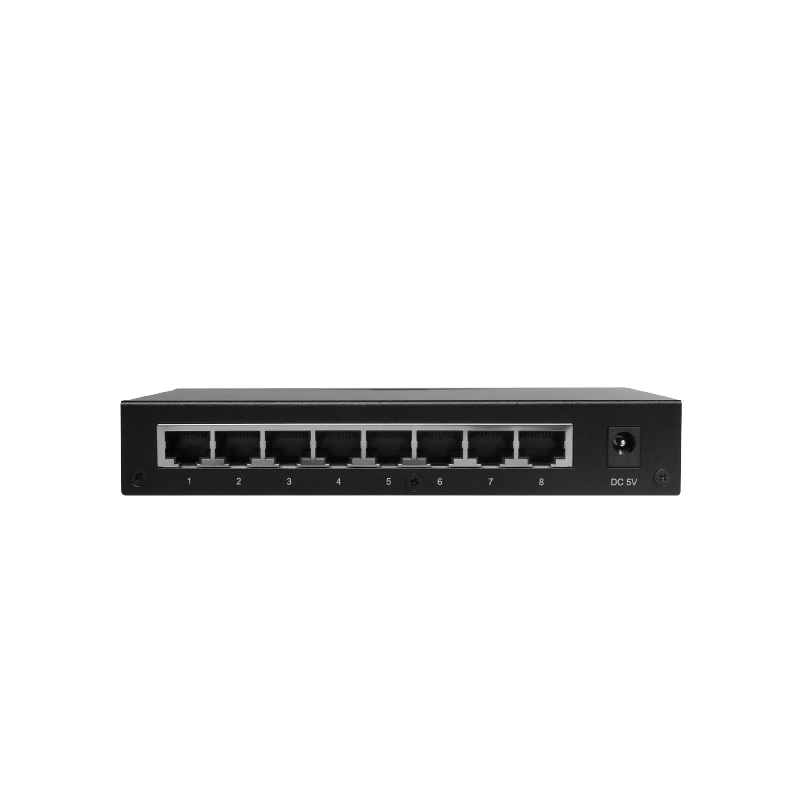

8個10/100/1000 Mbps RJ-45乙太網路連接埠 |
|
傳輸方式 |
儲存後轉發技術 |
|
按鍵 |
Reset 恢復出廠值 |
|
LED指示燈 |
POWER：電源(綠) Loop Detection：迴圈偵測(紅) LINK/ACT：每埠連線/傳輸(綠) |
|
電源供應 |
100~240V AC, 50-60 Hz, 變壓器輸出：5V DC, 1A |
|
尺寸(LxWxH) |
155*85*26公厘 |
|
效能 |
|
|
交換器性能 |
16Gbps |
|
MAC位址 |
8K |
|
記憶體緩衝區 |
256KB |
|
Jumbo Frame |
9K Bytes |
|
簡易智能網管 |
|
|
VLAN |
4組Port Based VLAN 802.1Q Tag Based MTU VLAN |
|
Port Trunking |
One geoup two port |
|
IGMP snooping |
IGMP v1/v2/v3 |
|
QoS |
802.1p QoS及 port rate limiting |
|
Management |
User Interface: Web-based Management User Account: Login account configuration Firmware Upgrade: Firmware Upgrade by WEB Loop Detection/Prevention |
|
Port Mirror |
1-to-1 Port (一組) |
|
操作環境 |
|
|
溫度 |
0° to 40°C |
|
濕度(非冷凝) |
10% to 90% |
|
標準 |
|
|
網路標準 |
IEEE 802.3 10BASE-T 乙太網路 IEEE 802.3u 100BASE-TX 高速乙太網路 IEEE 802.3ab 1000BASE-T 超高速乙太網路 IEEE 802.3 NWay自動協商機制 IEEE 802.3x 全雙工通訊與流量控制 IEEE 802.3az 節能乙太網路 |
|
安規認證 |
CE, FCC Class B |
